W61309S
Rear Control arm - inner bushing
W61309S
Rear Control arm - inner bushing
Dealers
Share via Email
Print
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge
Notes: Important
Single bolt design - Incl removal tool - standard height vehicles - offers 6-8mm toe and +/- 0.5deg camber adjustment
Kits Required: 1
Warranty: Lifetime

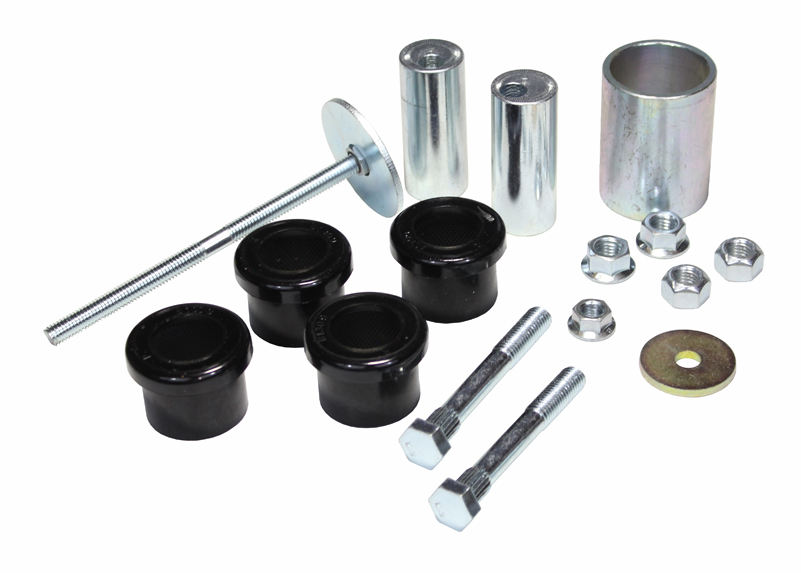

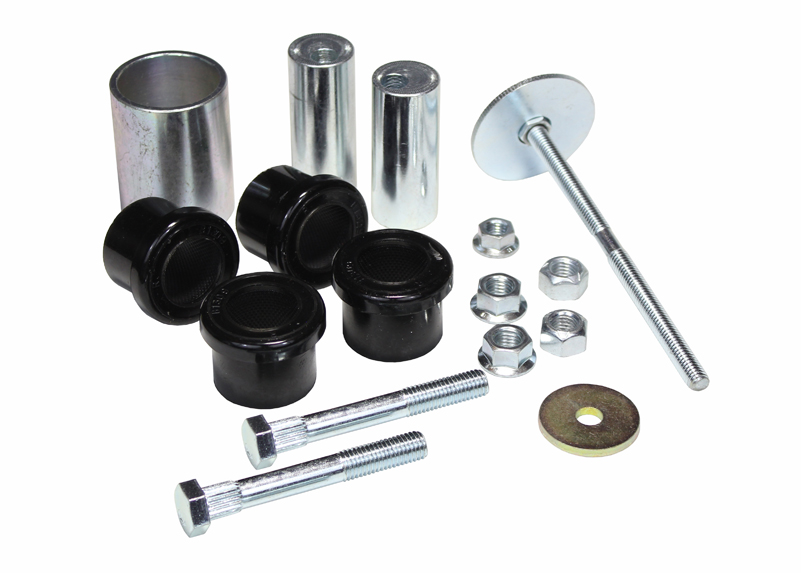

Kit Contents:   4 Bushings, 2 Tubes, 2 Bolts, 4 Nuts, Removal Tool, Install Guide, Grease
This IRS suspension systems suffers from uneven rear tyre wear especially when lowered or when towing. The Whiteline 2 point camber / toe correction kits improve rear wheel alignment settings and saves you on replacing costly tyres. This kit comes with a bush removal tool for quicker installation.
US $ 113.64
Install Guide
INSTALL GUIDE
Stockist
STOCKIST
Features
✓
Engineered to alter/ optimise camber alignment to compensate for body roll, body distortion and tyre roll when cornering.
✓
Featuring anti geometry that works to aid traction by allowing the wheel to track the ground more precisely resulting in superior traction under power including cornering and dramatically reducing understeer and front wheel spin.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self lubrication for optimum friction management.

Features
✓
Engineered to alter/ optimise camber alignment to compensate for body roll, body distortion and tyre roll when cornering.
✓
Featuring anti geometry that works to aid traction by allowing the wheel to track the ground more precisely resulting in superior traction under power including cornering and dramatically reducing understeer and front wheel spin.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self lubrication for optimum friction management.
Kit Specifications
Bush
Type		 Bush
Qty		 OD
AA/AB 		ID
B		 L
C		 FL
D		 FL
OD		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
1 4 41.4 mm 29.5 mm 36.5 mm 9.5 mm 2 29.5x11.9x71 mm click here
Alignment Type Adjustment Type On Car Adjustable
Camber/ Toe Eccentric Yes
Adjustment Notes
Incl Removal Tool - Std Height Vehicles - Offers 6-8mm Toe & +/- 0.5º Camber Adjustment
Kit Specifications
Bush Type 1
Bush Qty 4
OD (AA/AB) 41.4 mm
ID (B) 29.5 mm
L (C) 36.5 mm
FL (D) 9.5 mm
FL (OD)
C/Tube QTY 2
C/Tube Size 29.5x11.9x71 mm
Similar Bushing Size click here

Alignment Type Adjustment Type On Car Adjustable
Camber/ Toe Eccentric Yes
Adjustment Notes
Incl Removal Tool - Std Height Vehicles - Offers 6-8mm Toe & +/- 0.5º Camber Adjustment
Packaged Weight and Dimensions
Units Weight Length Width Height Fitment Difficulty
cm/kg 1.570kg 10cm 16cm 26cm
in/lbs 3.461lbs 4" 6" 10"
Units cm/kg in/lbs
Weight 1.570kg 3.461lbs
Length 10cm 4"
Width 16cm 6"
Height 26cm 10"
Fitment Difficulty
Other Options

W61309S
Vehicle Applications
W61309S is suitable for the following vehicles. Select a vehicle for specific fitment details:
CHEVROLET LUMINA VT, VX(9/1997-9/2002)
CHEVROLET LUMINA VZ(12/2001-7/2006)
HOLDEN ADVENTRA VY, VZ(10/2002-8/2006)
HOLDEN CALIBRA YE(10/1991-7/1998)
HOLDEN CAPRICE VQ(3/1990-2/1994)
HOLDEN CAPRICE VR, VS(3/1994-6/1999)
HOLDEN CAPRICE WH(6/1999-4/2003)
HOLDEN CAPRICE WK(5/2003-7/2004)
HOLDEN CAPRICE WL(8/2004-7/2006)
HOLDEN COMMODORE VN, VP, VG(8/1988-7/1993)
HOLDEN COMMODORE VR, VS(7/1993-9/1997)
HOLDEN COMMODORE VT, VX, VU(9/1997-9/2002)
HOLDEN COMMODORE VY, VZ(10/2002-8/2006)
HOLDEN MONARO V2(12/2001-8/2004)
HOLDEN MONARO VZ(9/2004-7/2006)
HOLDEN STATESMAN VQ(3/1990-2/1994)
HOLDEN STATESMAN VR, VS(3/1994-6/1999)
HOLDEN STATESMAN WH(6/1999-4/2003)
HOLDEN STATESMAN WK(5/2003-7/2004)
HOLDEN STATESMAN WL(8/2004-7/2006)
HSV AVALANCHE Y SERIES, Z SERIES(12/2003-4/2006)
HSV CAPRICE VR, VS(9/1994-6/1999)
HSV CLUBSPORT SV VP(5/1993-4/1994)
HSV CLUBSPORT VR, VS(8/1993-8/1997)
HSV CLUBSPORT VT, VX(9/1997-9/2002)
HSV CLUBSPORT Y SERIES, Z SERIES(10/2002-7/2006)
HSV COUPE 4 V2, Z SERIES(7/2004-4/2006)
HSV COUPE V2(12/2001-9/2004)
HSV COUPE Z SERIES(10/2004-11/2007)
HSV GRANGE VS(10/1996-12/1998)
HSV GRANGE WH(6/1999-4/2003)
HSV GRANGE WK(5/2003-8/2004)
HSV GRANGE WL(9/2004-12/2006)
HSV GTS VP(8/1992-12/1992)
HSV GTS VR, VS(5/1994-8/1997)
HSV GTS VT(9/1997-8/2000)
HSV GTS VX(9/2000-8/2001)
HSV GTS Y SERIES(10/2002-9/2004)
HSV MALOO VU(3/2001-10/2002)
HSV MALOO Y SERIES, Z SERIES(10/2002-9/2007)
HSV MANTA VS(4/1995-8/1997)
HSV MANTA VT(9/1997-1/1999)
HSV SENATOR VP(3/1992-8/1993)
HSV SENATOR VR, VS(8/1993-8/1997)
HSV SENATOR VT, VX(9/1997-9/2002)
HSV SENATOR Y SERIES, Z SERIES(10/2002-7/2006)
HSV STATESMAN VP, VQ, SV90, SV91, SV93(3/1990-2/1994)
HSV STATESMAN VR, VS(3/1994-6/1999)
HSV SV99 VT(7/1999-4/2000)
HSV SV300 VX(7/2001-12/2001)
HSV SV6000 Z SERIES(8/2005-4/2006)
HSV XU6 VT, VX(9/1998-10/2002)
HSV XU8 VT(1/1999-6/1999)
OPEL CALIBRA YE, YE95(10/1991-7/1998)
OPEL VECTRA A(10/1988-1995)
PONTIAC GTO 4TH GEN(2004-8/2006)
TOYOTA LEXCEN VN, VP(8/1988-7/1993)
TOYOTA LEXCEN VR, VS(7/1993-9/1997)
VAUXHALL CALIBRA GM2900(6/1990-12/1997)
VAUXHALL CAVALIER MK3(10/1988-1995)
VAUXHALL MONARO VXR(3/2004-4/2007)
